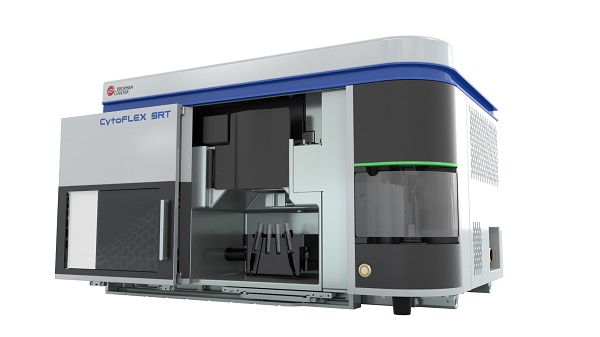

CytoFLEX SRT V5-B2-Y5-R3 Cell Sorter (15 Colors, 4 Lasers)
Product No:C71883
The CytoFLEX SRT V5-B2-Y5-R3 benchtop cell sorter includes innovative technologies to simplify setup and operation, empowering investigators to focus on research questions. It has 4 active lasers (405 nm, 488 nm, 561 nm, 638 nm) and 15 active fluorescence detectors. It includes 15 repositionable bandpass filters, 450/45, 525/40 (2), 585/42, 610/20 (2), 660/10 (2), 675/30, 690/50, 710/50, 712/25, and 780/60 (3). The complete system is supplied with computer work station with CytExpert for CytoFLEX SRT software and a fluidics cart that includes the sheath tank, a cleaning fluid container, and a waste container.
For Research Use Only. Not for use in diagnostic procedures.
Resources + Tools
Specifiche
| Regulatory Status | RUO |
| Signal Processing | Digital system with 7-decade display |
| Detection | Photodiodes |
| Lasers | 405 nm, 488 nm, 561 nm, 638 nm |
| Optical Filters | 450/45, 525/40 (2), 585/42, 610/20 (2), 660/10 (2), 675/30, 690/50, 710/50, 712/25, 780/60 (3) |
| Flow Cell | Alignment-free integrated optics quartz flow cell |
| Sorting Performance | With a target population of 5% and a threshold rate of <10,000 events per second, >99% purity and >80% of Poisson's expected yield |
| Collection Vessels | 12x75 mm tubes, 15 mL conical tubes, 96-well plates, 96-deep-well plates, 6-, 24-, 48-, 96- and 384-well plates, slides |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Humidity Restrictions | 20% RH-80% RH (non-condensing) |
| Weight | 62 kg (sorter), 13.5 kg (fluidics cart without fluid) |
| Depth | 72.5 cm |
| Width | 47.5 cm |
| Height | 45 cm |
| Product Category (BU) | Cell Sorter |
